Divided Trays

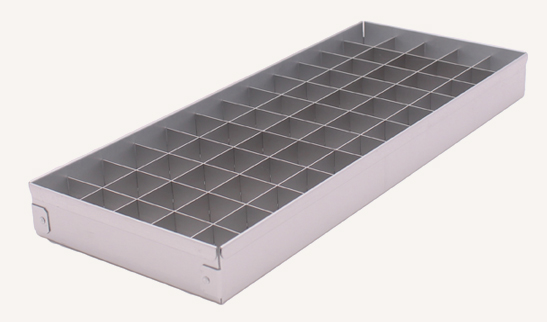

Divided trays are designed to be placed within a horizontal/ vertical cold store or be free standing. The body of the tray is available in anodised aluminium or stainless steel, dividers are made from 0.5mm aluminium and are not anodised.
The standard size cells we offer are; 10, 12, 13, 14, 16, 18, 20, 24, 30mm and other sizes are available on request. Use the division guide on the inside cover to check the size of the test tube you wish to store. As the cells have no spacing in between remember to accommodate for the cap or lid size too.
Aluminium trays are available in a range of colours including; black, red, gold, blue and purple.
Should you require a coloured tray please contact our sales team for a quotation.
| Size | Part number | 10mm | 12mm | 13mm | 14mm | 16mm | 18mm | 20mm | 24mm | 30mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 128 x 128 | WB01 | 12 x 12 (144) | 10 x 10 (100) | 9 x 9 (81) | 8 x 8 (64) | 7 x 7 (49) | 6 x 6 (36) | 6 x 6 (36) | 5 x 5 (25) | 4 x 4 (16) | |
| 128 x 154 | WB02 | 12 x 14 (168) | 10 x 12 (120) | 9 x 11 (99) | 8 x 10 (80) | 7 x 9 (63) | 6 x 8 (48) | 6 x 7 (42) | 5 x 6 (30) | 4 x 5 (20) | |
| 128 x 205 | WB03 | 12 x 19 (228) | 10 x 15 (150) | 9 x 15 (135) | 8 x 14 (112) | 7 x 11 (77) | 6 x 10 (60) | 6 x 9 (54) | 5 x 8 (40) | 4 x 6 (24) | |
| 128 x 256 | WB04 | 12 x 24 (288) | 10 x 20 (200) | 9 x 19 (171) | 8 x 17 (136) | 7 x 15 (105) | 6 x 13 (78) | 6 x 12 (72) | 5 x 10 (50) | 4 x 8 (32) | |
| 128 x 307 | WB05 | 12 x 29 (348) | 10 x 23 (230) | 9 x 23 (207) | 8 x 20 (160) | 7 x 18 (126) | 6 x 16 (96) | 6 x 14 (84) | 5 x 12 (60) | 4 x 10 (40) | |
| 128 x 384 | WB06 | 12 x 36 (432) | 10 x 30 (300) | 9 x 29 (261) | 8 x 25 (200) | 7 x 22 (154) | 6 x 20 (120) | 6 x 18 (108) | 5 x 15 (75) | 4 x 12 (48) | |
| 128 x 460 | WB07 | 12 x 43 (516) | 10 x 36 (360) | 9 x 34 (306) | 8 x 30 (240) | 7 x 26 (182) | 6 x 24 (144) | 6 x 22 (132) | 5 x 18 (90) | 4 x 15 (60) | |
| 154 x 154 | WB08 | 14 x 14 (196) | 12 x 12 (144) | 11 x 11 (121) | 10 x 10 (100) | 9 x 9 (81) | 8 x 8 (64) | 7 x 7 (49) | 6 x 6 (36) | 5 x 5 (25) | |
| 154 x 205 | WB09 | 14 x 19 (266) | 12 x 15 (180) | 11 x 15 (165) | 10 x 14 (140) | 9 x 11 (99) | 8 x 10 (80) | 7 x 9 (63) | 6 x 8 (48) | 5 x 6 (30) | |
| 154 x 256 | WB10 | 14 x 24 (336) | 12 x 20 (240) | 11 x 18 (198) | 10 x 17 (170) | 9 x 15 (135) | 8 x 13 (104) | 7 x 12 (84) | 6 x 10 (60) | 5 x 8 (40) | |
| 154 x 307 | WB11 | 14 x 29 (406) | 12 x 23 (276) | 11 x 22 (242) | 10 x 20 (200) | 9 x 18 (162) | 8 x 16 (128) | 7 x 14 (98) | 6 x 12 (72) | 5 x 10 (50) | |
| 154 x 384 | WB12 | 14 x 36 (504) | 12 x 30 (360) | 11 x 29 (319) | 10 x 25 (250) | 9 x 22 (198) | 8 x 20 (160) | 7 x 18 (126) | 6 x 15 (90) | 5 x 12 (60) | |
| 154 x 460 | WB13 | 14 x 43 (602) | 12 x 36 (432) | 11 x 34 (374) | 10 x 30 (300) | 9 x 26 (234) | 8 x 24 (192) | 7 x 22 (154) | 6 x 18 (108) | 5 x 15 (75) | |
| 205 x 205 | WB14 | 19 x 19 (361) | 15 x 15 (225) | 15 x 15 (225) | 14 x 14 (196) | 11 x 11 (121) | 10 x 10 (100) | 9 x 9 (81) | 8 x 8 (64) | 6 x 6 (36) | |
| 205 x 256 | WB15 | 19 x 24 (456) | 15 x 20 (300) | 15 x 18 (270) | 14 x 17 (238) | 11 x 15 (165) | 10 x 13 (130) | 9 x 12 (108) | 8 x 10 (80) | 6 x 8 (48) | |
| 205 x 307 | WB16 | 19 x 29 (551) | 15 x 23 (345) | 15 x 22 (330) | 14 x 20 (280) | 11 x 18 (198) | 10 x 16 (160) | 9 x 14 (126) | 8 x 12 (96) | 6 x 10 (60) | |
| 205 x 384 | WB17 | 19 x 36 (684) | 15 x 30 (450) | 15 x 29 (435) | 14 x 25 (350) | 11 x 22 (242) | 10 x 20 (200) | 9 x 18 (162) | 8 x 15 (120) | 6 x 12 (72) | |
| 205 x 460 | WB18 | 19 x 43 (817) | 15 x 36 (540) | 15 x 34 (510) | 14 x 30 (420) | 11 x 26 (286) | 10 x 24 (240) | 9 x 22 (198) | 8 x 18 (144) | 6 x 15 (90) | |
| 256 x 256 | WB19 | 24 x 24 (576) | 20 x 20 (400) | 18 x 18 (324) | 17 x 17 (289) | 15 x 15 (225) | 13 x 13 (169) | 12 x 12 (144) | 10 x 10 (100) | 8 x 8 (64) | |
| 256 x 307 | WB20 | 24 x 29 (696) | 20 x 23 (460) | 18 x 22 (396) | 17 x 20 (340) | 15 x 18 (270) | 13 x 16 (208) | 12 x 14 (168) | 10 x 12 (120) | 8 x 10 (80) | |
| 256 x 384 | WB21 | 24 x 36 (864) | 20 x 30 (600) | 18 x 29 (522) | 17 x 25 (425) | 15 x 22 (330) | 13 x 20 (260) | 12 x 18 (216) | 10 x 15 (150) | 8 x 12 (96) | |
| 256 x 460 | WB22 | 24 x 43 (1032) | 20 x 36 (720) | 18 x 34 (612) | 17 x 30 (510) | 15 x 26 (390) | 13 x 24 (312) | 12 x 22 (264) | 10 x 18 (180) | 8 x 15 (120) | |
| 307 x 307 | WB23 | 29 x 29 (841) | 23 x 23 (529) | 22 x 22 (484) | 20 x 20 (400) | 18 x 18 (324) | 16 x 16 (256) | 14 x 14 (196) | 12 x 12 (144) | 10 x 10 (100) | |
| 307 x 384 | WB24 | 29 x 36 (1044) | 23 x 30 (690) | 22 x 29 (638) | 20 x 25 (500) | 18 x 22 (396) | 16 x 20 (320) | 14 x 18 (252) | 12 x 15 (180) | 10 x 12 (120) | |
| 307 x 460 | WB25 | 29 x 43 (1247) | 23 x 36 (828) | 22 x 34 (748) | 20 x 30 (600) | 18 x 26 (468) | 16 x 24 (384) | 14 x 22 (308) | 12 x 18 (216) | 10 x 15 (150) | |
| 384 x 384 | WB26 | 36 x 36 (1296) | 30 x 30 (900) | 29 x 29 (841) | 25 x 25 (625) | 22 x 22 (484) | 20 x 20 (400) | 18 x 18 (324) | 15 x 15 (225) | 12 x 12 (144) | |
| 384 x 460 | WB27 | 36 x 43 (1548) | 30 x 36 (1080) | 29 x 34 (986) | 25 x 30 (750) | 22 x 26 (572) | 20 x 24 (480) | 18 x 22 (396) | 15 x 18 (270) | 12 x 15 (180) | |
| 460 x 460 | WB28 | 43 x 43 (1849) | 36 x 36 (1296) | 34 x 34 (1156) | 30 x 30 (900) | 26 x 26 (676) | 24 x 24 (576) | 22 x 22 (484) | 18 x 18 (324) | 15 x 15 (225) | |
| 133 x 133 | WB92 | 12 x 12 (144) | 10 x 10 (100) | 9 x 9 (81) | 8 x 8 (64) | 7 x 7 (49) | 7 x 7 (49) | 6 x 6 (36) | 5 x 5 (25) | 4 x 4 (16) | |
| 137 x 555 | WB255 | 12 x 52 (624) | 10 x 42 (420) | 10 x 41 (410) | 9 x 38 (342) | 8 x 33 (264) | 7 x 30 (210) | 6 x 27 (162) | 5 x 22 (110) | 4 x 18 (72) | |
| 133 x 555 | WB359 | 12 x 50 (610) | 10 x 42 (420) | 9 x 41 (369) | 9 x 37 (333) | 7 x 33 (231) | 7 x 29 (203) | 6 x 27 (162) | 5 x 22 (110) | 4 x 18 (72) |
