Test tube racks
Test Tube racks are an effective way of storing Falcon/ Universal tubes, Bijous, cryogenic vials or any size glass bottles. Racks are available in aluminium and stainless steel with the option of a hand grip. Test Tube racks can be designed to fit in horizontal cold store or be free standing. The standard size holes we offer are; 10, 12, 13, 14, 16, 18, 20, 24, 30mm and other sizes are available on request. Different size test tubes racks are available to suit your requirements. Test tube racks are available in colours such as black, red, gold, blue and purple, labels can be fitted to racks so they can be easily identified.
Single platform
Single platform test tube racks are ideal for storing short test tubes with flat bottoms. The height of a single platform frame ranges from 22 - 42 mm. When ordering, please provide information about the height of the test tube to be sorted.
| Hole diameter | Format | Capacity | Height (mm) | Length (mm) | Width (mm) | Part number |
|---|---|---|---|---|---|---|
| 7 | 5 x 10 | 50 | 28 | 127 | 62 | SP0750 |
| 12 | 4 x 12 | 48 | 28 | 216 | 77 | SP1248 |
| 13.5 | 5 x 10 | 50 | 46 | 187 | 94 | SP1350 |
| 14 | 4 x 10 | 40 | 22 | 207 | 87 | SP1440 |
| 14 | 5 x 10 | 50 | 22 | 207 | 107 | SP1450 |
| 17.5 | 3 x 10 | 30 | 33 | 232 | 75 | SP1730 |
| 17.5 | 4 x 10 | 40 | 33 | 232 | 98 | SP1740 |
| 17.5 | 5 x 10 | 50 | 33 | 232 | 120 | SP1750 |
| 17.5 | 2 x 12 | 24 | 33 | 277 | 53 | SP1724 |
| 17.5 | 3 x 12 | 36 | 33 | 277 | 75 | SP1736 |
| 18 | 5 x 10 | 50 | 30 | 252 | 129 | SP1850 |
| 18 | 10 x 10 | 100 | 30 | 252 | 249 | SP18100 |
| 23.5 | 6 x 6 | 36 | 30 | 177 | 173 | SP2336 |
| 23.5 | 6 x 7 | 42 | 30 | 204 | 173 | SP2342 |
| 23.5 | 12 x 7 | 84 | 30 | 341 | 200 | SP2384 |
| 30 | 1 x 10 | 10 | 42 | 364 | 54 | SP3010 |
| 30 | 2 x 6 | 12 | 42 | 223 | 80 | SP3020 |
Double platform

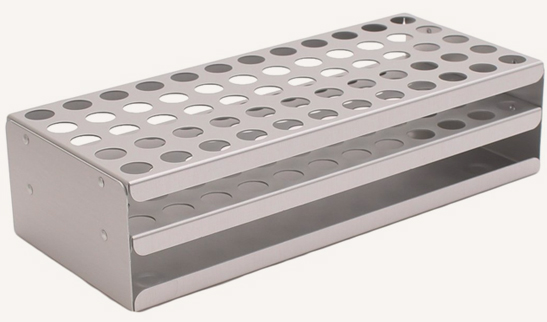

Double platform racks are ideal for storing test tubes with a higher or round bottom. The standard height for double platform racks is 46 or 60 mm. Other sizes are available upon request. If you need a larger rack, consider a triple platform rack.
| Hole diameter | Format | Capacity | Height (mm) | Length (mm) | Width (mm) | Part number |
|---|---|---|---|---|---|---|
| 11 | 2 x 10 | 20 | 46 | 214 | 48 | DP1120 |
| 11 | 3 x 10 | 30 | 46 | 214 | 68 | DP1130 |
| 11 | 4 x 10 | 40 | 46 | 214 | 88 | DP1140 |
| 11 | 5 x 10 | 50 | 46 | 214 | 108 | DP1130 |
| 11 | 4 x 12 | 48 | 46 | 253 | 88 | DP1148 |
| 11 | 5 x 12 | 60 | 46 | 253 | 108 | DP1160 |
| 14 | 2 x 10 | 20 | 60 | 210 | 52 | DP1420 |
| 14 | 4 x 10 | 40 | 60 | 210 | 87 | DP1440 |
| 14 | 5 x 10 | 50 | 60 | 210 | 107 | DP1450 |
| 14 | 3 x 12 | 36 | 60 | 250 | 67 | DP1436 |
| 14 | 4 x 12 | 48 | 60 | 250 | 87 | DP1448 |
| 14 | 5 x 12 | 60 | 60 | 250 | 107 | DP1460 |
| 14 | 12 x 12 | 144 | 60 | 250 | 246 | DP14144 |
| 18 | 2 x 10 | 20 | 60 | 233 | 53 | DP1820 |
| 18 | 3 x 10 | 30 | 60 | 233 | 75 | DP1830 |
| 18 | 4 x 10 | 40 | 60 | 233 | 98 | DP1840 |
| 18 | 5 x 10 | 50 | 60 | 233 | 120 | DP1850 |
| 18 | 10 x 10 | 100 | 60 | 233 | 233 | DP18100 |
| 18 | 2 x 12 | 24 | 60 | 277 | 53 | DP1824 |
| 18 | 3 x 12 | 36 | 60 | 277 | 75 | DP1836 |
| 18 | 4 x 12 | 48 | 60 | 277 | 98 | DP1848 |
| 18 | 5 x 12 | 60 | 60 | 277 | 120 | DP1860 |
| 18 | 10 x 12 | 120 | 60 | 277 | 233 | DP18120 |
| 20 | 2 x 10 | 20 | 60 | 283 | 70 | DP2020 |
| 20 | 3 x 10 | 30 | 60 | 283 | 85 | DP2030 |
| 20 | 4 x 10 | 40 | 60 | 283 | 112 | DP2040 |
| 20 | 5 x 10 | 50 | 60 | 283 | 140 | DP2050 |
| 20 | 2 x 12 | 24 | 60 | 336 | 70 | DP2024 |
| 20 | 3 x 12 | 36 | 60 | 336 | 85 | DP2036 |
| 20 | 4 x 12 | 48 | 60 | 336 | 112 | DP2048 |
| 20 | 5 x 12 | 60 | 60 | 336 | 140 | DP2060 |
